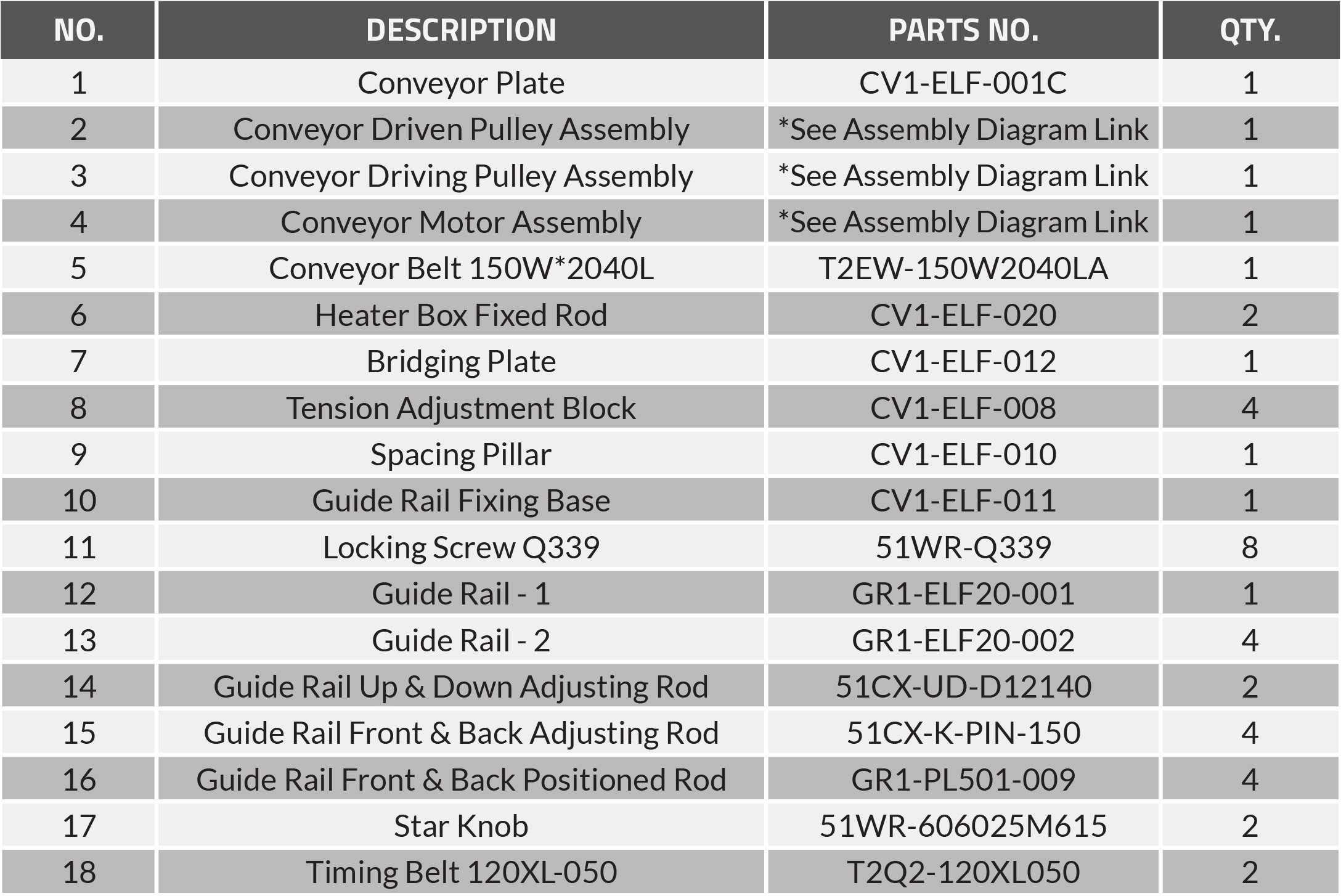

Reference for conveyor assembly parts
No. |
Description |
Parts No. |
QTY |
|
1 |
Conveyor Plate |
CV1-ELF-001C |
1 |
|
2 |
Conveyor Driven Pulley Assembly |
1 |
|
|
3 |
Conveyor Driving Pulley Assembly |
1 |
|
|
4 |
Conveyor Motor Assembly |
1 |
|
|
5 |
Conveyor Belt 150W*2040L |
T2EW-150W2040LA |
1 |
|
6 |
Heater Box Fixed Rod |
CV1-ELF-020 |
2 |
|
7 |
Bridging Plate |
CV1-ELF-012 |
1 |
|
8 |
Tension Adjustment Block |
CV1-ELF-008 |
4 |
|
9 |
Spacing Pillar |
CV1-ELF-010 |
1 |
|
10 |
Guide Rail Fixing Base |
CV1-ELF-011 |
1 |
|
11 |
Locking Screw Q339 |
51WR-Q339 |
8 |
|
12 |
Guide Rail - 1 |
GR1-ELF20-001 |
1 |
|
13 |
Guide Rail - 2 |
GR1-ELF20-002 |
4 |
|
14 |
Guide Rail Up & Down Adjusting Rod |
51CX-UD-D12140 |
2 |
|
15 |
Guide Rail Front & Back Adjusting Rod |
51CX-K-PIN-150 |
4 |
|
16 |
Guide Rail Front & Back Positioned Rod |
GR1-PL501-009 |
4 |
|
17 |
Star Knob |
51WR-606025M615 |
2 |
|
18 |
Timing Belt 120XL-050 |
T2Q2-120XL050 |
2 |
